MERLO CINGO RANGE OVERVIEW

MERLO M500 OVERVIEW

Click to see brochure

The CINGO multi-purpose transporters are compact and easy-to-handle machines designed for working in tight spaces. The low centre of gravity ensures maximum lateral stability on slopes and the tracks put less pressure on the ground, providing greater adherence on uneven and irregular terrains.

The M500 model is an innovative, manageable and safe tool carrier, which offers top-class features, such as orbital hydraulic motors for maximum traction and the “over-centre” valve, which allows uphill/downhill speed control with the machine loaded. Among the easy and intuitive controls are the parking brake with manual control and an optional digital hour metre and tachometer display.

The Cingo Transporter M500 can be used in all sectors for the handling of material in confined spaces and on steep and uneven terrain. With a total width of 690mm, it transports the materials with ease, passing through doors and gates and in the narrowest passages without any problems.

This mini dumper is available in 3 versions:

• The M500 DM comes as standard with TIPPER DUMPER: ideal for transporting loose material and for precision unloading.

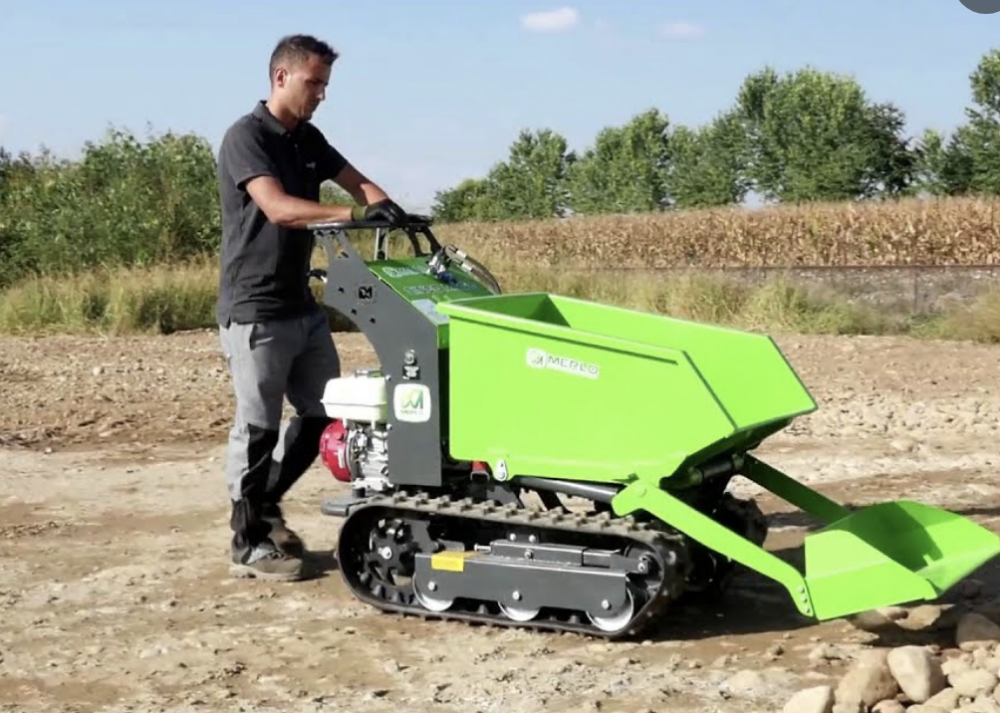

• The M500 DP comes as standard with SELF-LOADING DUMPER: with the benefit of the front loader with hydraulic lifting for loading material into the dumper.
• The M500 C comes as standard with TIPPER DUMPER WITH SIDES: the versatility of a tipper dumper with sides that, when required, become an integral part of the load bed, increasing its surface.

New ergonomic driving position, easy and simple to manoeuvre and the sturdy and solid chassis has been improved on the new range.

This machine is a handy, compact and safe transporter, which offers superior class features.

With orbital hydraulic motors for maximum traction, the machine offers greater performance for a better adherence and drive comfort: the robust rubber tracks exert low specific pressure on the ground.

The hydraulic transmission with the over-centre valve allows maximum speed control on slopes, increasing safety when ascending and descending. The easy to use controls include the parking brake with manual control.

Quick specs. M500:

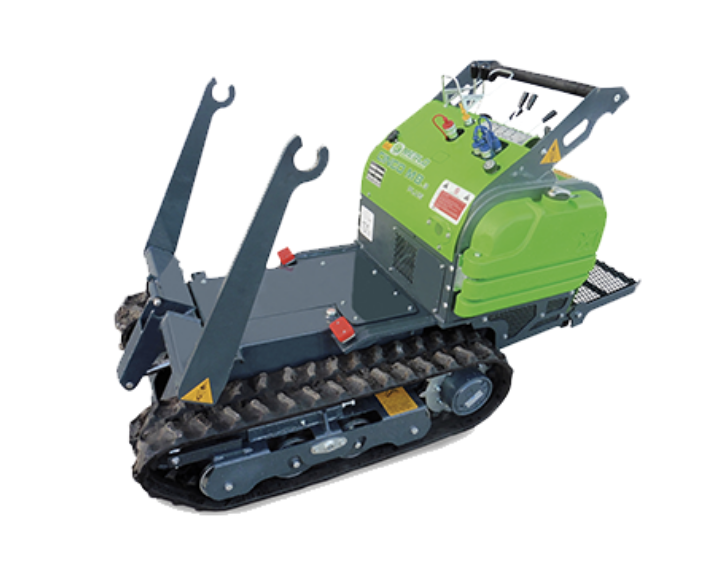

MERLO M8.3 PLUS OVERVIEW

The multifunctional Cingo is a practical solution for work on different scenarios, from hillsides of mountainous area to hard work in tight spaces. The multifunction Cingo offers maximum traction capacity, maximum ergonomics, easy handling and simplified maintenance.

Thanks to its compact size, the Cingo M8.3 PLUS is the ideal multi-functional machine for working in particularly narrow spaces. The 17hp diesel engine and the high attachment angle of the tracks allow the machine to overcome any obstacle, thereby ensuring maximum versatility in all work situation.

The hydrostatic transmission with variable hydraulic pumps and gear motors, coupled with the power of the engine, make this machine a particularly manageable instrument capable of operating in all work conditions. The transmission of torque is directly transmitted to the tracks: this ensures maximum performance and drive transmission capacity.

The integrated parking brake provides excellent dynamic braking, requiring less space for stopping and therefore high safety for the operator and greater precision in carrying out the work: the new compact and reliable solution provides a progressive and safe meshing. Automatically activated when the operator releases the driving levers or when the diesel engine is switched off.

The auxiliary 8-way hydraulic system is fed by a pump at 27 litres/min, ensuring excellent management of hydraulic operation of any attachment. Therefore the RH case allows easy inspection of the engine bay for routine maintenance.

Strong rubber tracks suitable for all terrains with low specific pressure. Four oscillating rollers increase the driving comfort and transport safety, dampening the obstacles the machines is facing. Therefore track guides ensure a noise reduction.

The structure dumpers and platform’s shock-absorbing system reduce the vibrations transmitted to the operator, while the large support surface further enhances the driving comfort.

Quick coupling system (Merlo patent)

The attachments for the Multifunctional Cingo system are the winning idea that has freshly defined the concept of multi-purpose for tracked dumpers. There are numerous work tools with new technology available for all models, which increase its potential for use, highlight its versatility and optimise the use in all fields: from construction to agriculture, from recycling to landscape gardening.

It takes just few seconds to connect the desired attachment: a quick and effective respond to the increasingly new demands for lifting, excavating, transporting, loading and unloading with precise handling.

Quick specs. M 8.3 Plus:

• Capacity 800 kg
• Machine weight 510 kg
• Length 1620 mm
• Width 800 mm
• Diesel Engine Kubota 17 hp
• Hydrostatic transmission with gear motor and variable hydraulic pumps
• Gear service pump 8cc (27 l/m – 180 bar), double pump as opt
• Four hydraulic connectors

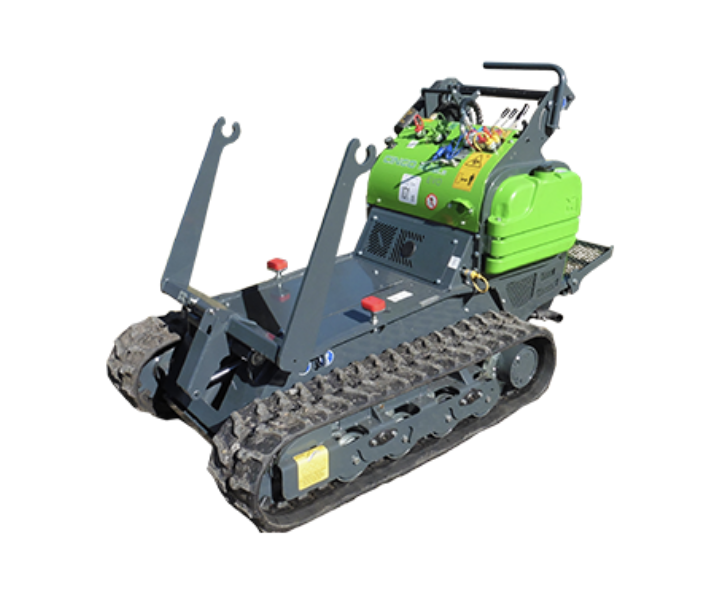

MERLO M12.3 EVO OVERVIEW

The multifunctional Cingo is a practical solution for work on different scenarios, from hillsides of mountainous area to hard work in tight spaces. The multifunction Cingo offers maximum traction capacity, maximum ergonomics, easy handling and simplified maintenance.

Thanks to its compact size, the Cingo M12.3 EVO is the ideal multi-functional machine for working in particularly narrow spaces. The 21hp diesel engine and the high attachment angle of the tracks allow the machine to overcome any obstacle, thereby ensuring maximum versatility in all work situation.

The hydrostatic transmission with variable hydraulic pumps and gear motors, coupled with the power of the engine, make this machine a particularly manageable instrument capable of operating in all work conditions. The transmission of torque is directly transmitted to the tracks: this ensures maximum performance and drive transmission capacity.

The integrated parking brake provides excellent dynamic braking, requiring less space for stopping and therefore high safety for the operator and greater precision in carrying out the work: the new compact and reliable solution provides a progressive and safe meshing. Automatically activated when the operator releases the driving levers or when the diesel engine is switched off.

The auxiliary 8-way hydraulic system is fed by double pump at 27+8 litres/min, ensuring excellent management of hydraulic operation of any attachment. Therefore the RH case allows easy inspection of the engine bay for routine maintenance.

Strong rubber tracks suitable for all terrains with low specific pressure. Four oscillating rollers increase the driving comfort and transport safety, dampening the obstacles the machines is facing. Therefore track guides ensure a noise reduction.

The structure dumpers and platform’s shock-absorbing system reduce the vibrations transmitted to the operator, while the large support surface further enhances the driving comfort.

Quick coupling system (Merlo patent)

The attachments for the Multifunctional Cingo system are the winning idea that has freshly defined the concept of multi-purpose for tracked dumpers. There are numerous work tools with new technology available for all models, which increase its potential for use, highlight its versatility and optimise the use in all fields: from construction to agriculture, from recycling to landscape gardening.

It takes just few seconds to connect the desired attachment: a quick and effective respond to the increasingly new demands for lifting, excavating, transporting, loading and unloading with precise handling.

Quick specs M12.3 EVO:

• Capacity 1200 kg
• Machine weight 720 kg
• Length 1850 mm
• Width 1000 mm
• Diesel Engine Kubota 21 hp, 3 cylinders
• Hydrostatic transmission with gear motor and variable hydraulic pumps
• Double gear service pump 8cc + 2.5cc (27 + 8 l/m – 200 bar)
• 8 hydraulic connectors

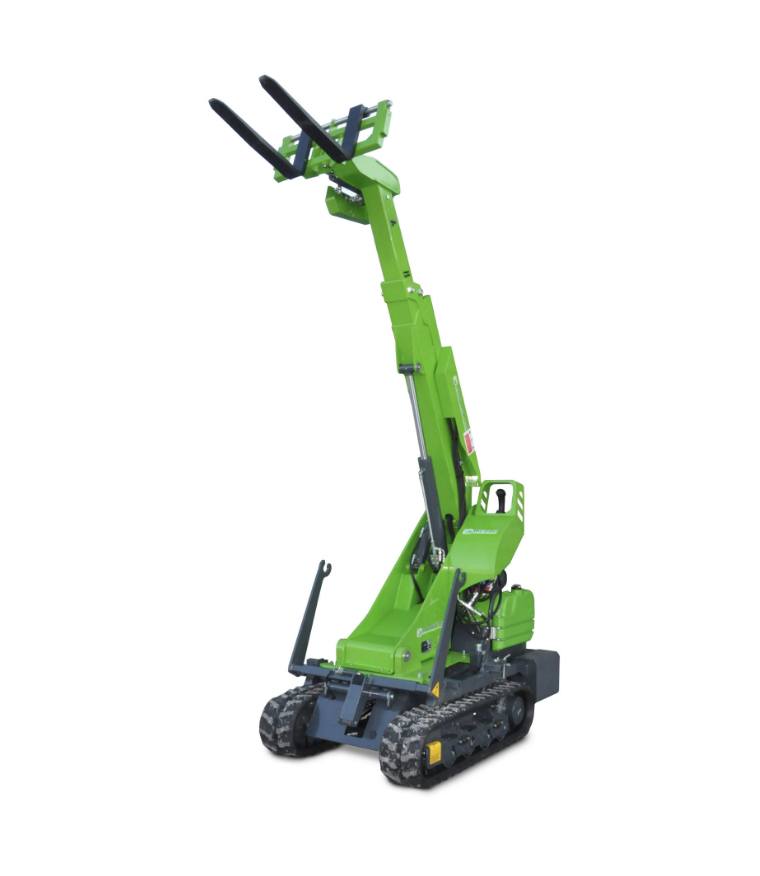

MERLO M12.3 EVO HANDLER 400 OVERVIEW

The multifunctional M12.3 EVO HANDLER 400 is a genuine compact telescopic handler: the exclusive Handler attachment consists in a telescopic boom sliding on adjustable anti-friction pads. With a maximum lifting capacity of 400kg for 3.4m of maximum height, the handler is equipped as standard with the anti-tilt system that provides maximum operator safety.

The front carriage has manual attachment locking, meanwhile the boom controls are handled from an ergonomic electromechanical joystick. The machine is fitted with standard front hydraulic stabilisers, to ensure best performance and safety during the loading/unloading operations.

The Handler 400 is supplied with floating forks as standard, however when required the telescopic boom can also be fitted with a wide variety of other attachments (loaders, forks with grab, log gripper, hedge cutters, etc.) for digging, lifting, transporting and cutting.

The Handler 400 is a practical solution for work on different scenarios, from hillsides of mountainous area to hard work in tight spaces. This multifunction Cingo offers maximum traction capacity, maximum ergonomics, easy handling and simplified maintenance.

Thanks to its compact size, the M12.3 EVO HANDLER 400 is the ideal super compact telescopic handler for working in particularly narrow spaces. The 21hp Kubota diesel engine and the high attachment angle of the tracks allow the machine to overcome any obstacle, thereby ensuring maximum versatility in all work situation.

The hydrostatic transmission with variable hydraulic pumps and gear motors, coupled with the power of the engine, make this machine a particularly manageable instrument capable of operating in all work conditions. The transmission of torque is directly transmitted to the tracks: this ensures maximum performance and drive transmission capacity.

The integrated parking brake provides excellent dynamic braking, requiring less space for stopping and therefore high safety for the operator and greater precision in carrying out the work: the new compact and reliable solution provides a progressive and safe meshing. Automatically activated when the operator releases the driving levers or when the diesel engine is switched off.

The auxiliary hydraulic system is fed by double pump at 27+8 litres/min, ensuring excellent management of hydraulic operation of any attachment. Therefore the RH case allows easy inspection of the engine bay for routine maintenance.

Strong rubber tracks suitable for all terrains with low specific pressure. Four oscillating rollers increase the driving comfort and transport safety, dampening the obstacles the machines is facing. Therefore track guides ensure a noise reduction.

The structure dumpers and platform’s shock-absorbing system reduce the vibrations transmitted to the operator, while the large support surface further enhances the driving comfort.

Considering the compact dimension for this great performance, no other similar track carrier are available on the market!

MAIN MACHINE FEATURES

For further details of this exciting and practical product, please give us a call on 01684-772912. All of our machines are fully pre-delivery inspected and ready to go straight to work.
